Produktdetails
Herkunftsort: CHINA
Markenname: Ecolite/OEM/ODM
Zahlungs- und Versandbedingungen
Min Bestellmenge: 1000
Preis: Inquiry
Verpackung Informationen: Karton-Palettenbehälter
Lieferzeit: 1-2 Monate
Zahlungsbedingungen: L/C, T/T
Versorgungsmaterial-Fähigkeit: 50000 Stück
Nutzungsszenario: |
Wohnwagen/Innen- und Außenräume |
Kapazität: |
300Ah |
Größe ((L×W×H): |
387 × 206,5 × 409 mm |
Gewicht: |
32 kg |
Energie: |
3840Wh |
Nennspannung: |
12,8 V |
Abschaltspannung: |
10V |
Arbeitstemperatur: |
-20℃ bis 60℃ |
Ladetemperatur: |
0°C bis + 55°C |
Lademodus: |
CC/CV |
Ladespannung: |
14.2V bis 14,6V |
Nutzungsszenario: |
Wohnwagen/Innen- und Außenräume |
Kapazität: |
300Ah |
Größe ((L×W×H): |
387 × 206,5 × 409 mm |
Gewicht: |
32 kg |
Energie: |
3840Wh |
Nennspannung: |
12,8 V |
Abschaltspannung: |
10V |
Arbeitstemperatur: |
-20℃ bis 60℃ |
Ladetemperatur: |
0°C bis + 55°C |
Lademodus: |
CC/CV |
Ladespannung: |
14.2V bis 14,6V |

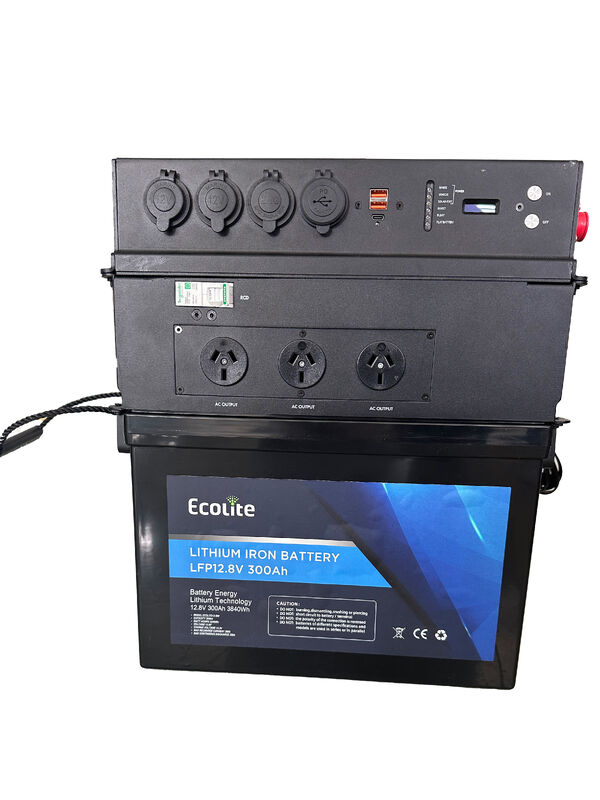

Portable Power Station 12.8V 300Ah 3840Wh 1200W Inverter LiFePO4 RV Camping
This portable power station combines a 12.8V 300Ah 3840Wh LiFePO4 battery, a 1200W pure sine wave inverter, and versatile charging inputs in a compact 32kg package. With three AC outlets, multiple DC and USB ports, and a smart monitoring display, this portable power station is the all‑in‑one energy solution for camping, RV, marine, and home backup use.
Specifications
| Battery parameters | Standard | |
| Rated Capacity | 300Ah/3840Wh | |
| Nominal Voltage | 12.8V | |
| Cut-off Voltage | 10V | |
| Max.Discharge Current | 250A Continuous | |
| Maximum Charging Current | 200A per Battery | |
| Working Temperature | -20℃ to 60℃ | |
| Charging Mode | CC/CV | |
| Charging Voltage | 14.2V-14.6V | |
| Standby/Float Voltage | 13.3V~13.4V@100% | |
| Charging Temperature | 0℃~+55℃ | |
| Connector And Display | ||
| DC Input | Anderson 50A(Blue) | Alterator,DC11.5~DC32V,Max30A |
| Anderson 50A(Red) | Solar,DC14V-DC50V,Max30A | |
| DC Output | Anderson 120A(Grey) | DC10~DC14.6V,Max120A |
| M8 terminal post | DC10-DC14.6V,Max200A | |
| CigaSocketr(x2) | DC10-DC14.6V,Max10A | |
| Engle Socket(x1) | DC10-DC14.6V,Max10A | |
| USB-C PD3.0(x2) | 5V3A,9V-3A.12V-2.25A.Max27W | |
| USB-A QC3.0(x2) | 5V3A,9V-2A,12V-1.5A,Max18W | |
| USB-C PD3.0(x1) | 5V3A,9V-3A,12V-3A.15V-3A.20V-3A,Max60W | |
| AC Output | AC(x3) | AC120V,60Hz,1200W |
| Other | 2P Wiring Terminal | lgnition |
| Dispaly | LED Indicator Light | Fullycharged/Solar /AlternatoroveroltageUndervoltage/overcurrent |
| AC Output | Display Screen | Voltage/CurentSOC/Alarm Information |
| Other parameters | ||
| Size(L*W*H) | 387x206.5x409mm | |
| Weight | 32Kg | |
Core Specifications of This Portable Power Station
This portable power station features a 12.8V 300Ah LiFePO4 battery with 3840Wh of stored energy. This portable power station delivers 1200W continuous AC output (2000W surge) through a pure sine wave inverter. This portable power station has a nominal voltage of 12.8V and a discharge cut‑off of 10V. Continuous discharge current of this portable power station is 250A, with maximum charging current of 200A. This portable power station operates from -20°C to 60°C and charges from 0°C to 55°C. Dimensions of this portable power station are 387 by 206.5 by 409mm, weighing 32 kilograms.
AC Output of This Portable Power Station
This portable power station provides three AC 120V 60Hz outlets with 1200W continuous power and 2000W surge capacity. The pure sine wave output of this portable power station protects sensitive electronics like laptops, TVs, and medical devices. This portable power station runs refrigerators, fans, lights, power tools, and communication equipment without risk of damage from modified sine wave distortion.
DC and USB Connectivity on This Portable Power Station
This portable power station includes a grey Anderson 120A connector for high‑current DC loads. M8 terminal posts on this portable power station handle up to 200A for heavy‑duty connections. This portable power station features two lighter sockets and one Engle socket (10A each) for 12V accessories. USB ports on this portable power station include two USB‑C PD3.0 (27W max each), one USB‑C PD3.0 (60W max), and two USB‑A QC3.0 (18W max) for fast charging phones, tablets, and laptops. A 2‑pin ignition terminal is also available on this portable power station.
